Banana Sportster Tank 550 Banana Sportster Tank 550
Above left and right :
Banana Sportster Tank.
Normally the holes in the brackets are much bigger to take rubber mounts.
With filler cap but without speedo aperture 450
With speedo aperture as shown here 550
Stretch tank 29 inches long 450 Stretch tank 29 inches long 450
Above left and right :
This is another example of our stretch tank, 29 inches long.
450
Chris Hunts bike Chris Hunts bike
Chris Hunts bike from Edinburgh.
Above and left :
This ia a manx style tank with a new style beak seat.
To do jobs like this we need the bike at our workshop.
Black Country Customs Trike Left :
This ia a tank for a trike
for Black Country Customs.
Just another example to show
the type of work we can do.


Below:
This is Marks TL1000L tank. As you can see Mark has fitted a TL1000 seat.
We have manufactured this as a one-off tank to suit the Triumph frame, 450.
Mark has chosen the works type double filler which adds another 100 to the cost.
This is another example of the one-offs we can produce. We enjoy making your bike that bit more special.
PLEASE NOTE. This is not a production tank for the Hinckley Triumphs.
Marks TL1000L One-off tank to suit the Triumph frame
Below: (four pictures)
Letterbox custom tank for four inch stretch stock Harley frame with custom rubber mounts.
The letterbox takes Dakota oblong speedo/rev counter with mini hidden aircraft filler cap neck.
Petrol tap bosses to suit Harley Davidson pingle tap.
This is a totally unique, one-off tank.
NOT a production tank that you would see every day!
Price approx. 550
Letterbox custom tank approx. 550 Letterbox custom tank approx. 550
Letterbox custom tank approx. 550 Letterbox custom tank approx. 550

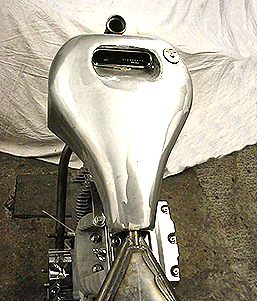

Sportster tank approx. 550 Left and two pictures below:
Triple curvatured,
one-off, Sportster tank.
Mini aircraft filler,
oblong Dakota speedo recess
and hidden rubber mounts.
This tank is just to show you
what can be done
with a bit of imagination!
Price approx. 550
Sportster tank approx. 550 Sportster tank approx. 550
A NOTE ABOUT DELIVERY CHARGES!
These are the approximate delivery charges for one tank to the following areas:
America 85
Europe 35
Australia 100
Britain 20 next day delivery
Left:
This is our Flat Tracker tank
fitted to an XS650 Yamaha frame.
COMING SOON!
A picture of the same tank
fitted to a T140 with centre bolt fixing
Below:
Another example of a Harris tank with boost gauge for turbo set in the top of the tank.
This will give you some idea of the different things we can do.
The price for this sort of work is approximately 450
Harris tank with set in boost gauge for turbo Harris tank with set in boost gauge for turbo
Below:
These tanks can be adapted to any frame not just Harleys
Tanks can be made longer, shorter, wider or narrower
These tanks can be adapted to any frame not just 	Harleys Tanks can be made longer, shorter, wider or narrower
Custom tanks, various lengths, any tunnel dimension 450 	including filler cap

Above top left:
Can be made between
24 inches and 27 inches long
Above top right:
Can be made between
21 inches and 26 inches long
Above bottom:
Can be made up to 27 inches long.
Any tunnel dimension.
All tanks need to be rubber mounted.
Prices from 450 including filler cap.

Webb GSXR 1100 Suzuki

Above:
Webb GSXR 1100 Suzuki tank
This is based on a Fireblade without air box
which gives this tank approx.24 litres.
Air passes through ducting to carbs
which is force fed through a high pressure area
on front of the fairing.
This is a one-off tank to fit a one-off frame.
This is the type of project
we can do for you.


1400 VN Suzuki Intruder Left:
1400 VN Suzuki Intruder
16 Ltr. tank fits all original fittings,
uses original fuel tap and choke switch.
Lock stops may be necessary
on the steering.
Also has hidden breather.
This tank is a prototype and is scurfed finished ready for etching primer and paint.
450
Available with 400, 300 or 200 series
aircraft filler cap or others to order.

1400 VN Suzuki Intruder 1400 VN Suzuki Intruder
Silver Harley Above left and right:
A different style for the
1400 VN Suzuki Intruder.


Left:
On this Silver Harley you can see
one of our custom made flat track style
tank and seat units.
Look out for it
at the
Rocking Blues
Custom Show

Super narrow at the back Sprint tank to fit wideline Norton frame

Above and left:
Sprint tank to fit wideline Norton frame.
This tank is super narrow at the back
so the rider can climb about the bike.
We made this for Mike Hunt
of 'Two Wheels', Hampshire.
Above:
As you can see this tank has a carburettor cut out for a Manx Norton
as well as a deep base to miss the cam box, this is not necessary for Tritons.
The tank comes with one or two tap bosses, with or without clip on dents
and we also make it for a slimline frame where two petrol tap bosses are located further forward.
450 inc filler cap
The wideline tank is normally 8 and a half inches wide
and the slimline tank is normally 6 and a half inches wide at rear of tank
